Progressive Cavity Pump in Oil Pumping
The oil industry pushes a number of machines to their limits. Progressive cavity pumps are widely used in demanding industrial oil operations for the transportation of oily sewage, mud, polymers, high pressure injection oil, heavy oil, mixed oil, and other mediums. The progressive cavity pump is designed to transport crude oil containing less than 5% solids and other materials. Metering progressive cavity pumps are used to transport flocculants and various additives. V Class progressive cavity pumps are designed for the transportation of oil across long distances, inject high pressure polymers, and to move mixed oils and gases. Vertical progressive cavity pumps can be installed in oil contaminated water tanks to remove the oily sewage and mud.

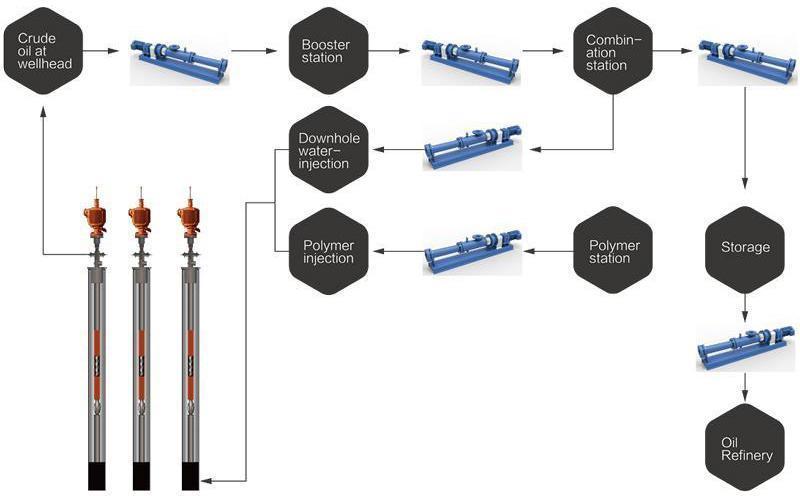

Flowchart of pump for oil industry
Pump type:

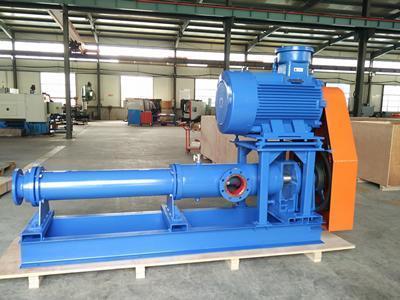

VD100 progressive cavity pump
Recommended medium: Polymer
Flow: 100M3/H
Pressure: 4Bar
Motor power: 30KW
Pump type: VD060 progressive cavity pump
Recommended medium: Oily sewage
Flow: 20M3/H
Pressure: 2Bar
Motor power: 7.5KW

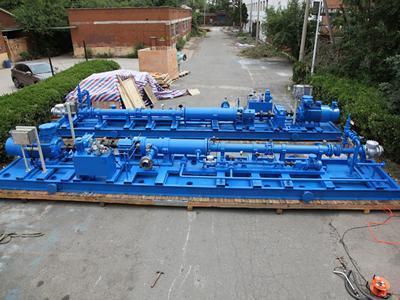

Pump type:VD100 progressive cavity pump
Recommended medium: Mixed oil and water
Flow: 50M3/H
Pressure: 28Bar
Motor power: 110KW
Pump type: VD100 progressive cavity pump
Recommended medium: Mixed oil gas and water
Flow: 50M3/H
Pressure: 40Bar
Motor power: 110KW
Pump type: VD100 progressive cavity pump
Recommended medium: Crude oil
Flow: 45M3/H
Pressure: 14Bar
Viscosity: 200cp
Temperature: 55-65℃
Pump type: VD090 progressive cavity pump
Recommended medium: Oil containing water
Flow: 50M3/H
Pressure: 24-32Bar
Motor power: 200KW

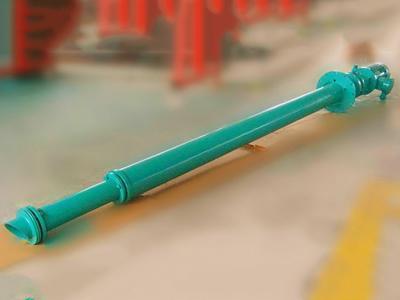

Pump type:VD070 Vertical progressive cavity pump
Recommended medium: Crude oil containing water
Flow: 20M3/H
Pressure: 3Bar
Motor power: 11KW

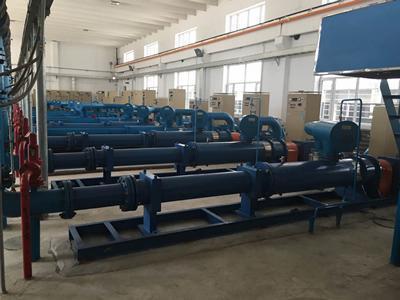

Pump type: VD100 progressive cavity pump
Recommended medium: Sump oil containing water
Flow: 120M3/H
Pressure: 4.5Bar
Motor power: 37KW
Pump type:VD100 progressive cavity pump
Recommended medium: Sump oil
Flow: 15M3/H
Pressure: 8Bar
Gear motor: 7.5KW

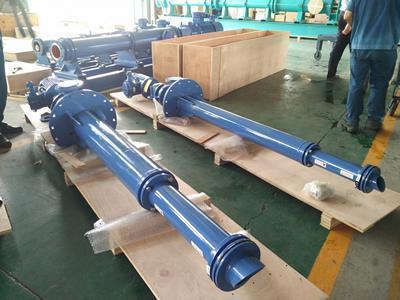

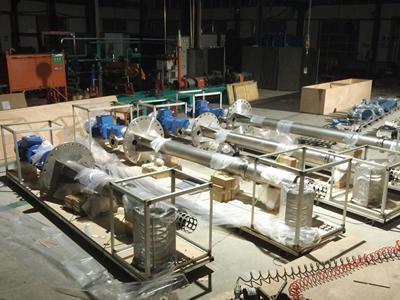

Pump type: VD090-OU Vertical progressive cavity pump
Recommended medium: Mixed oil and water
Flow: 30M3/H
Pressure: 10Bar
Gear motor: 22KW

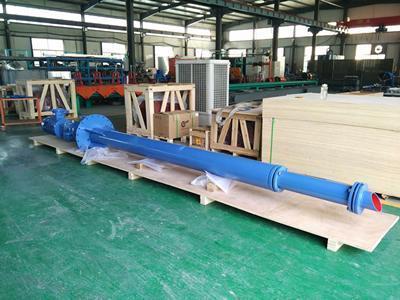

Pump type: VD070-OU Vertical progressive cavity pump
Recommended medium: Crude oil containing water
Flow: 20M3/H
Pressure: 3Bar
Gear motor: 11KW
Pump type:VD060-OU Vertical progressive cavity pump
Recommended medium: Oil-polluted water
Flow: 20M3/H
Pressure: 2Bar
Gear motor: 7.5KW
