Progressive Cavity Pump in Sewage and Sludge Pumping
Progressive cavity pumps are ideal pumping solutions for sewage and sludge transmission operations. These pumps are commonly applied in environmental protection jobs thanks to their high transport capacity even with mediums with significant solid content and high viscosity. Advantages that lend the pump an edge over similar product for every day applications such as sewage and sludge treatment. Subtor progressive cavity pumps are designed to handle municipal sewage, industrial sewage, dilute sludge, activated sludge, dewatered sludge, flocculants, additives, and many other mediums with ease. The monoblock progressive cavity pump design is used to transport mediums with a solid content less than 5%, the metering progressive cavity pump is designed for flocculants and additives, and the hopper progressive cavity pump is intended for the transport of dewatered sludge with solid content between 18-28%.

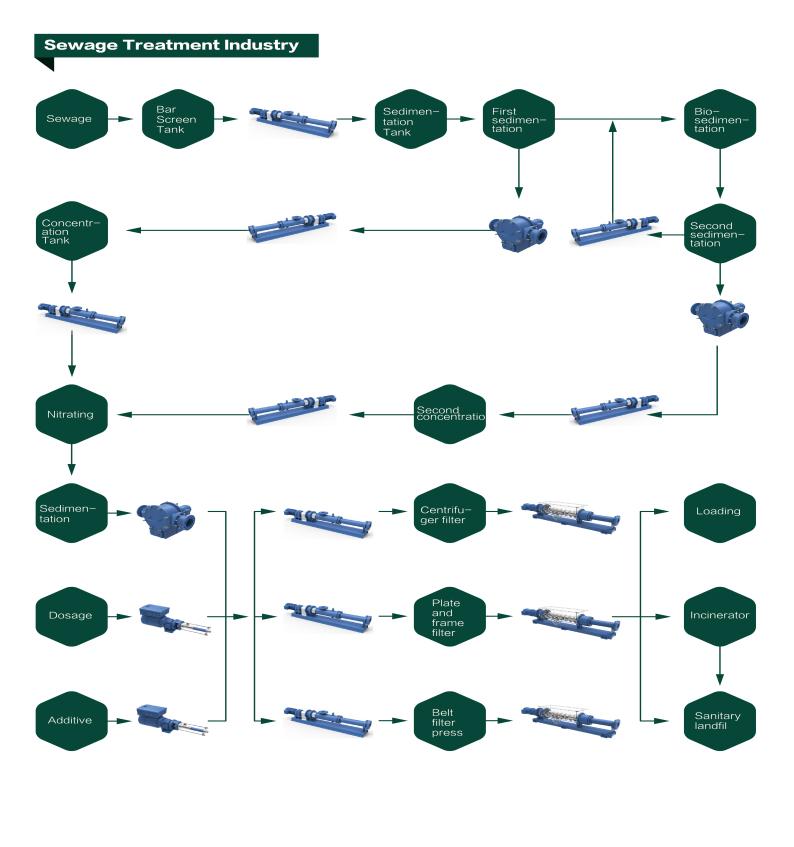

Sewage treatment pumping process flow in environmental protection applications
Pump type: VD030 progressive cavity pump
Recommended medium: flocculants
Rate of flow: 1.5M3/H
Pressure: 2Bar
Motor power: 1.5KW
Pump type:VD060 progressive cavity pump
Recommended medium: sludge
Rate of flow: 11-20M3/H
Pressure: 6Bar
Motor power: 5.5KW
Pump type: VD060 progressive cavity pump
Recommended medium: sewage
Rate of flow: 25.2M3/H
Pressure: 2Bar
Motor power: 5.5KW
Pump type: VD090 progressive cavity pump
Recommended medium: sewage
Rate of flow: 67M3/H
Pressure: 4Bar
Motor power: 22KW
Pump type: VD020 progressive cavity pump
Recommended medium: PAM
Rate of flow: 0.6M3/H
Pressure: 6Bar
Motor power: 0.25KW

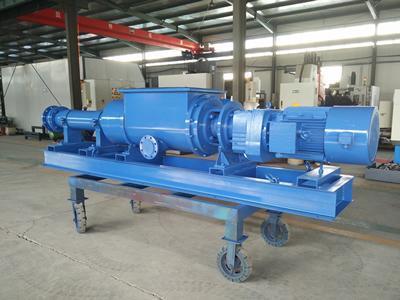

Pump type: VD100 hopper pump
Recommended medium: dewatered sludge
Rate of flow: 25M3/H
Pressure: 6Bar
Motor power: 30KW
Pump type:VD020 progressive cavity pump
Recommended medium: PAM
Rate of flow: 1M3/H
Pressure: 2Bar
Motor power: 0.75KW

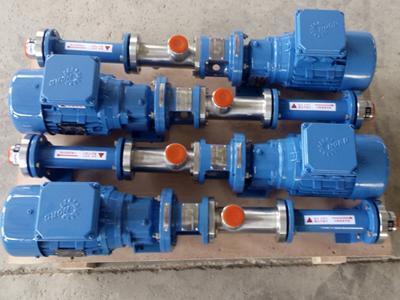

Pump type:VD020 metering pump
Recommended medium: PAM polyacrylamide
Rate of flow: 0.6m3/h
Pressure: 4Bar
Reduction motor: 0.75KW
Pump type: VD035 metering pump
Recommended medium: active carbon solution
Rate of flow: 4m3/h
Pressure: 4Bar
Reduction motor: 2.2KW
Pump type: VD020 metering pump
Recommended medium: PAC
Rate of flow: 1.1m3/h
Pressure: 4Bar
Reduction motor: 0.75KW
Pump type: VD035 metering pump
Recommended medium: sewage
Rate of flow: 4m3/h
Pressure: 3Bar
Reduction motor: 3KW

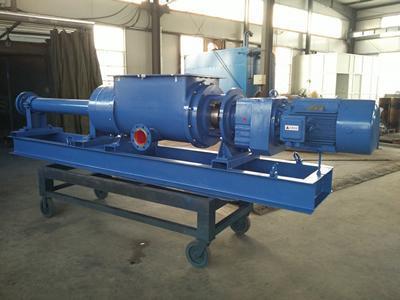

Pump type: VD070-M2 hopper pump
Recommended medium: sludge
Rate of flow: 10m3/h
Pressure: 24Bar
Reduction motor: 22KW

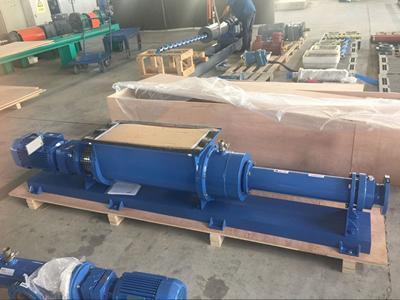

Pump type: VD060-M2 hopper pump
Recommended medium: dewatered sludge
Rate of flow: 6m3/h
Pressure: 6Bar
Reduction motor: 11KW
Pump type:VD070-M2 hopper pump
Recommended medium: dewatered sludge
Rate of flow: 5m3/h
Pressure: 20Bar
Reduction motor: 22KW
Pump type: VD090 hopper pump
Recommended medium: dewatered sludge
Rate of flow: 10m3/h
Pressure: 14Bar
Reduction motor: 22KW
Pump type:VD040-M3 hopper pump
Recommended medium: sludge
Rate of flow: 0.5m3/h
Pressure: 10Bar
Reduction motor: 4KW
