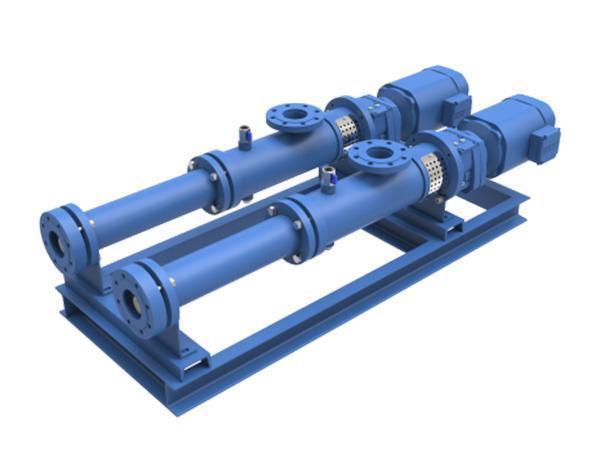

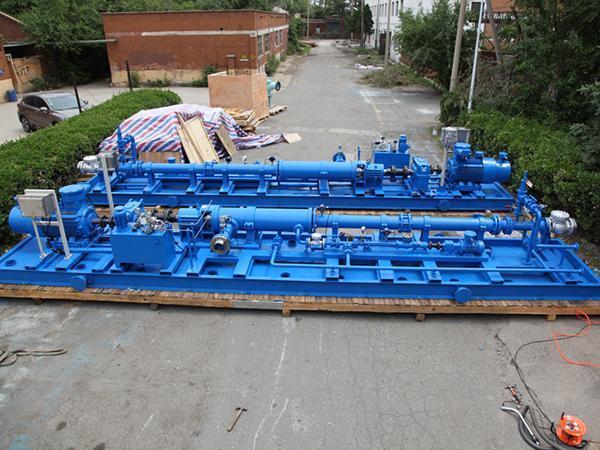

The skid mount progressive cavity pump allows 2-3 pumps to share a common base. This makes the pump suitable for applications in which multiple pumps operating in parallel require a large flow. It can also be applied when a backup pump is immediately necessary in case of fault. The pump features a compact design and works for mediums including water with solid content 45% or below.

It can be used in in the following applications.
Offshore oil production platform: transport mixed oil and gas medium
Underground oil extraction: transport crude oil with sand, water, CO2 or H2S.
Machinery industry: complete procedures (coating and glue injecting of cars and crafts) with the mechanical arm in unmanned assembly workshops
Mining industry: delivering solid media such as slurry and mortar

Level: 1-12 level
Type: Single/Dual head(s) Progressive Cavity Pump

Operation pressure
Single head pump: 6 bar, 12 bar, 18 bar, 24 bar, 36 bar, 48 bar, 60 bar, 72 bar
Dual head pump: 5 bar, 10 bar, 20 bar

Model Flow range m3/h Rotate speed range rpm Motor power Kw
VD090-026M02OH 40~85 180~350 15~30
VD100-040M02OH 50~110 180~320 22~45
VD120-060M02OH 50~160 150~280 30~75
VD150-112M02OH 100~220 120~230 55~90
VD170-150M02OH 110~250 100~200 75~110
VD090-026M04OH 40~80 180~350 30~55
VD100-040M04OH 50~100 180~320 45~90
VD120-060M04OH 50~150 150~280 75~160
VD150-112M04OH 100~200 120~230 90~200
VD170-150M04OH 110~230 100~200 110~250

Operation theory of progressive cavity pump
The progressive cavity pump is a volumetric pump design that creates a pressure differential by rotating the interconnected seal cavities at high speed. This send the fluid flowing through the pump rapidly.

Structure features of progressive cavity pump
Structural features
  • Design drawing of the stator and the rotor
    Designed picture of stator and rotor
  • Metal flexible rod universal joint
    Metal flexible rod universal joint
  • Spring flexible rod universal joint
    Spring flexible rod universal joint
  • Ball tooth universal joint
    Ball tooth universal joint

We can design and process the rotors into different geometric shapes according to customer requirements. The hardness can also be improved to HRC 65-67

Material: NBR, NBRH, HNBR, EPDM and FKM are optional.
These materials have varying specifications.

Universal joint
Various types of universal joints are available to choose form such as pin, hygienic, flexible, ball tooth and cross pin to deal with multiple torque transfers and axial loads.

According to the working conditions, packing seals and mechanical seals are optional. A flushing and cleaning system can be installed to extend the life of the shaft.

Driving system
SEW, NORD, ABB and more high quality driving systems are optional.

Weifang Subtor as a German Subtor invested company in China, offers wide range of progressive cavity pumps and components. The skid mount progressive cavity pump has typical applications as oil and gas pumping, heavy oil pumping, mining slurry pumping, etc. A progressive cavity pump is a type of positive displacement pump, also known as eccentric screw pump. With German supported technology and rich marketing resources, Subtor provides quality PCP pumps with custom solutions for global clients.
