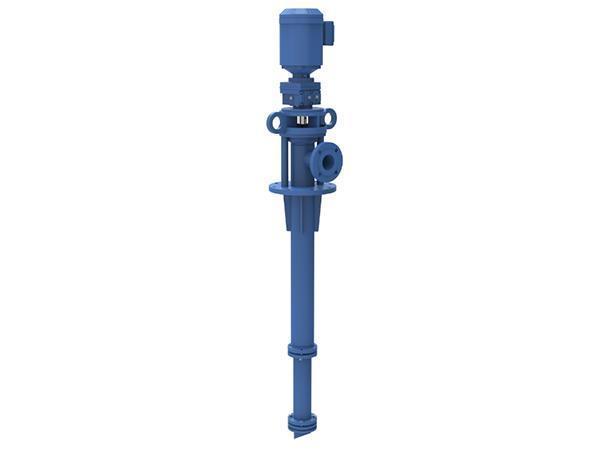

Vertical Progressive Cavity Pump

  • Vertical Progressive Cavity Pump
  • Vertical Progressive Cavity Pump

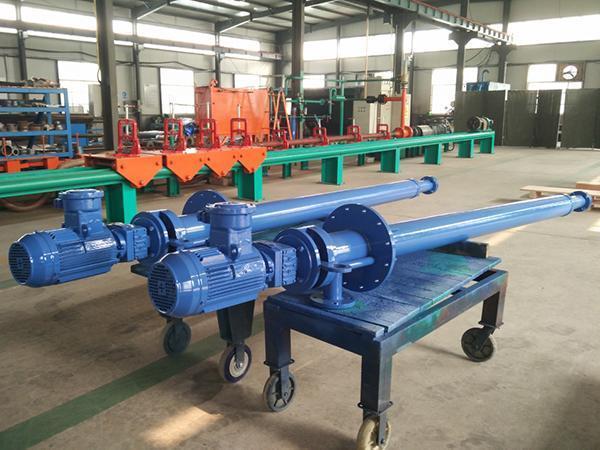

The length of OU vertically class progressive cavity pump can be adjustable, so that the pump can be adjusted to pools or wells of various depths. The rotor and stator stay under the water while operating the pump
so that the gear motor does not come into contact with the medium. The suction port of the pump is located at the bottom of the pool and it is fixed by the foot to maximize stability.

The pump is used across various industries such as the following:
Food industry: delivery fresh juice, beer, wine and other beverages; yogurt, cheese, Boudin and other dairy products
Coal slurry industry: delivery coal slurry
Paint and coat industry: delivery ink, paint and more
Oil industry: delivery oily sewage and sewage sludge

Parameters of VD-P02OU vertical class progressive
Cavity pump: maximum working pressure 6 bar
Model Flow range m3/h Rotate speed range rpm Motor power Kw
VD030-056P02OU 1.5~7 180~650 0.55~1.5
VD035-120P02OU 3~12 180~600 0.75~3
VD040-010P02OU 4~15 150~550 1.1~5.5
VD050-022P02OU 8~25 150~450 5.5~7.5
VD060-038P02OU 12~40 150~400 7.5~11
VD070-058P02OU 15~60 120~380 11~18.5
VD090-106P02OU 30 ~100 120~350 15~30
VD100-160P02OU 35~140 100~320 15~37
VD120-240P02OU 40~200 90~280 37~55
VD150-460P02OU 50~300 60~240 45~75
VD170-600P02OU 60~360 50~200 45~90
Parameters: Maximum working pressure 12 bar
Model Flow range m3/h Rotate speed range rpm Motor power Kw
VD030-028P04OU 0.5~3.5 180~650 0.55~1.5
VD035-060P04OU 1.5~6 180~600 0.75~3
VD040-005P04OU 2~7.5 150~550 1.1~5.5
VD050-011P04OU 4~12.5 150~450 5.5~7.5
VD060-019P04OU 6~20 150~400 7.5~11
VD070-029P04OU 7.5~30 120~380 11~18.5
VD090-053P04OU 15 ~50 120~350 15~30
VD100-080P04OU 17.5~70 100~320 15~37
VD120-120P04OU 20~100 90~280 37~55
VD150-460P04OU 25~150 60~240 45~90

Operation theory of progressive cavity pump
This progressive cavity pump is a volumetric pump design that operates through the interference fit between the eccentric rotor and fixed stator. The interconnected seal cavities are exposed to the inlet and outlet through rotation and this allows the flow of the fluid through the pump.

Structure features of progressive cavity pump
Structural features
  • Design drawing of the stator and the rotor
    Designed picture of stator and rotor
  • Metal flexible rod universal joint
    Metal flexible rod universal joint
  • Spring flexible rod universal joint
    Spring flexible rod universal joint
  • Ball tooth universal joint
    Ball tooth universal joint

We can design and process the rotor into various geometric shapes according to customer requirements. And metal material can be treated for surface hardening. After treatment the metal can reach HRC65-67 hardness.

Material: NBR, NBRH, HNBR, EPDM and FKM are optional.
Various materials can achieve different levels of abrasion resistance, high temperature resistance under varying working conditions.

Universal joint
Various types of universal joints are available for selection such as pin, hygienic, flexible, ball tooth and cross pin.

According to the working condition, packing seal and mechanical seals are optional. In order to prolong the shaft seal life, a cooling and flushing system can be added.

Driving system
SEW, NORD, ABB and more high quality driving systems are optional.

Weifang Subtor as a German Subtor invested company in China, offers wide range of progressive cavity pumps and components. The OU class vertical progressive cavity pump has typical applications as food and drink pumping, water pumping, coal slurry pumping, sludge pumping, wastewater pumping, chemical pumping, etc. A progressive cavity pump is a type of positive displacement pump, also known as eccentric screw pump. With German supported technology and rich marketing resources, Subtor provides quality PCP pumps with custom solutions for global clients.
