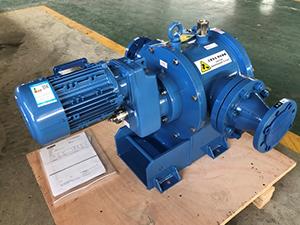

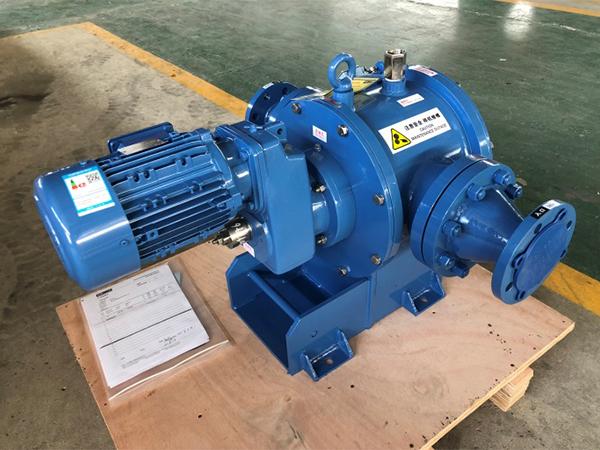

Progressive Cavity Pump Grinder Macerator

  • Progressive Cavity Pump Grinder Macerator
  • Progressive Cavity Pump Grinder Macerator

Application
The grinder macerator is installed on the front of the progressive cavity pump, and is used to grind large pieces into smaller soft and fibrous materials. It can also grind up hard materials such as stone in order to prevent blocks in the pump body, and thus, protect the pump performance and structure.

Parameters
Model flange of inlet /outlet Flow range m³/h solid % Speed range rpm Motor power Kw
VDMⅡ-080 DN80/PN16 0~35 0-8% 280~350 1.5 ~2.2
VDMⅡ-100 DN100/PN16 0~50 0-8% 280~350 2.2
VDMⅡ-125 DN125/PN16 20~80 0-8% 280~350 2.2~3
VDMⅡ-150 DN150/PN16 50~110 0-8% 280~350 2.2~3
VDMⅡ-200 DN200/PN16 85~200 0-8% 280~350 3
VDMⅡ-250 DN250/PN16 85~200 0-8% 280~350 3~4
VDMⅡ-300 DN300/PN16 85~200 0-8% 280~350 4
Parameters

Features

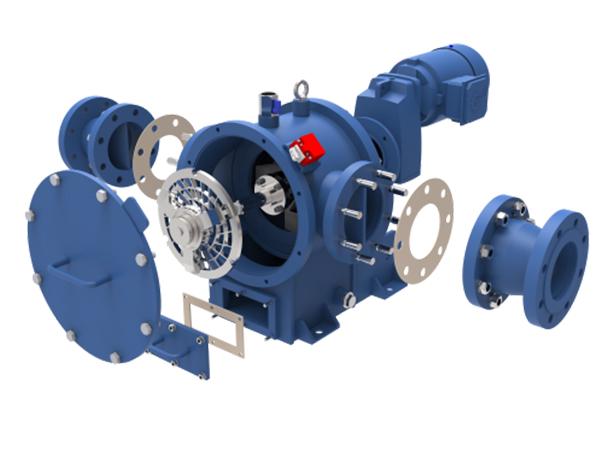

1. The VDM Macerator features a modular design.
2. Suitable for high temperature resistance, up to 300℃
3. High pressure, small torque, single stage pressure can reach 12bar

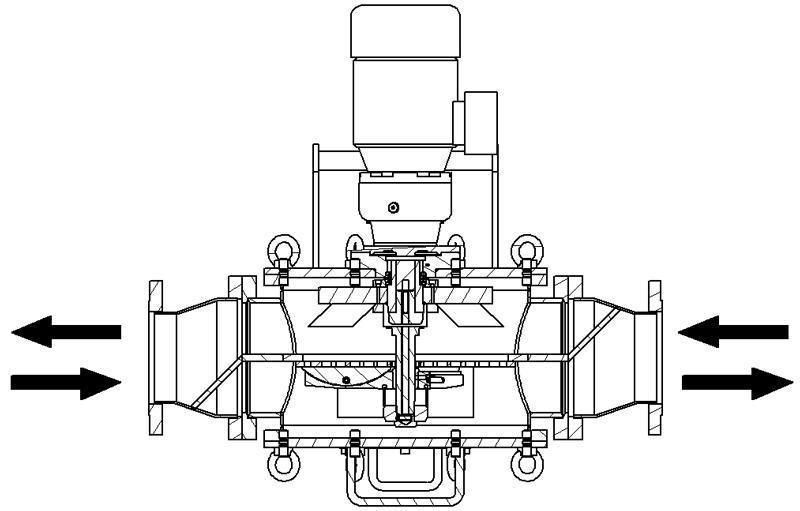

4. The flow direction of the medium is reversible and working conditions are adaptable.
5. Variable diameter joints are equipped at both the outlet and entrance, making it suitable for use in different pipelines.
6. General design of main components
7. The compact structure makes it ideal for installation in narrow spaces.
8. Equipped with NORD gear motor

Weifang Subtor as a German Subtor invested company in China, offers wide range of progressive cavity pumps and PCP pump grinder macerator. With German supported technology and rich marketing resources, Subtor provides quality PCP pumps with custom solutions for global clients.
