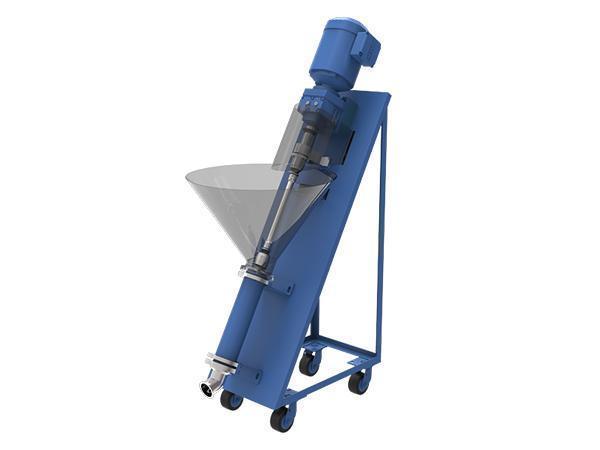

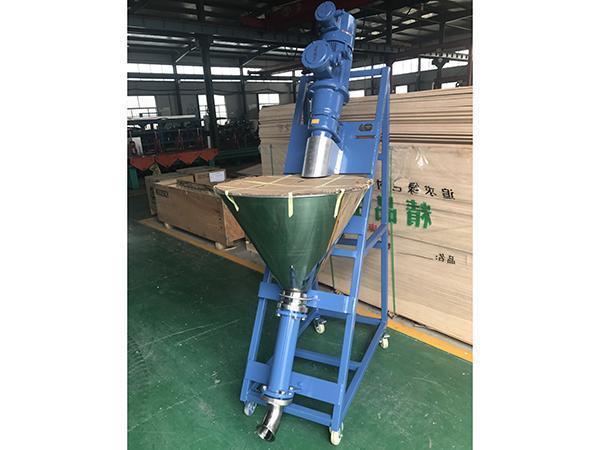

SM Open Hopper Progressive Cavity Pump

  • SM Open Hopper Progressive Cavity Pump
  • SM Open Hopper Progressive Cavity Pump

Application
The SM open hopper progressive cavity pump, is suitable for the conveyance of water and other materials with a maximum of 45% solid content mediums. It features an open suction chamber the makes filing and ration supply of thick mediums convenient, and is easy to move with the use of trundles.

Parameters
Max working pressure 6 bar
Model Flow range m3/h Rotate speed range rpm Motor power Kw
VD015-003P02VM 0.1~0.35 180~750 0.37~0.55
VD020-009P02VM 0.2~0.75 180~750 0.55~0.75
VD030-028P02VM 0.7~3 180~650 0.55~1.1
VD035-060P02VM 1.5~6 180~600 0.75~2.2
VD040-005P02VM 2~7.5 150~520 0.75~3
VD050-011P02VM 4~15 150~500 2.2~7.5
VD015-006P02VM 0.2~0.7 180~750 0.55~1.1
VD020-018P02VM 0.4~1.5 180~750 0.75~1.5
VD030-056P02VM 1.5~6 180~650 1.1~3
VD035-120P02VM 3~12 180~600 1.5~4
VD040-010P02VM 4~15 150~520 1.5~5.5
VD050-022P02VM 8~30 150~500 4~15
Parameters
Max working pressure 12 bar
Model Flow range m3/h Rotate speed range rpm Motor power Kw
VD015-003P04VM 0.1~0.35 180~750 0.55~1.1
VD020-009P04VM 0.2~0.75 180~750 0.75~1.5
VD030-028P04VM 0.7~3 180~650 1.1~3
VD035-060P04VM 1.5~6 180~600 1.5~4
VD040-005P04VM 2~7.5 150~520 1.5~5.5
VD050-011P04VM 4~15 150~500 4~15

Weifang Subtor as a German Subtor invested company in China, offers wide range of progressive cavity pumps and components. The SM class open hopper progressive cavity pump has typical applications as viscous fluid pumping, water pumping, sludge pumping, etc. A progressive cavity pump is a type of positive displacement pump, also known as eccentric screw pump. With German supported technology and rich marketing resources, Subtor provides quality PCP pumps with custom solutions for global clients.
