Metering Progressive Cavity Pump

  • Metering progressive cavity pump with drawbar and transducer

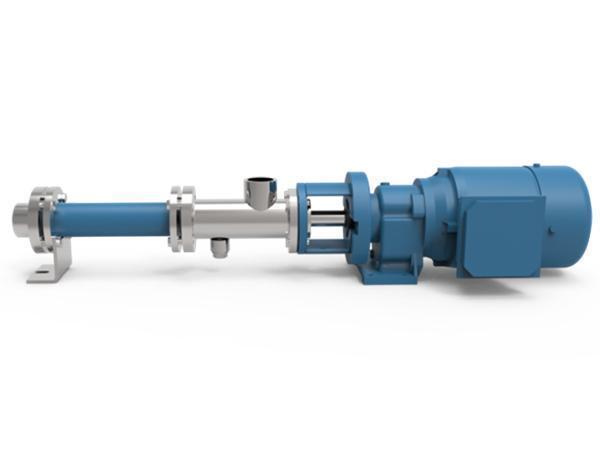

    Metering progressive cavity pump with drawbar and transducer
  • Metering progressive cavity pump with support arm (no drawbar)

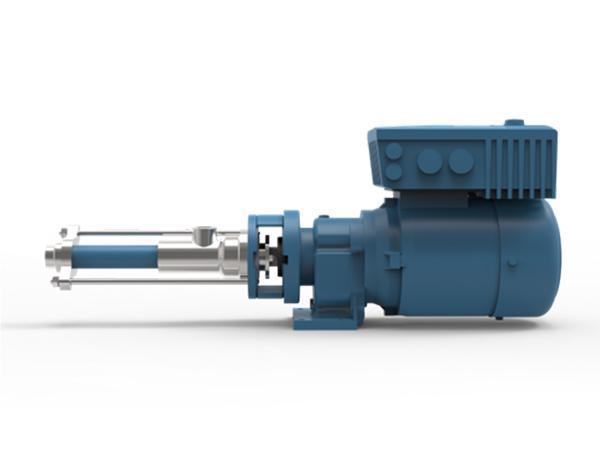

    Metering progressive cavity pump with support arm (no drawbar)
  • Metering progressive cavity pump structure

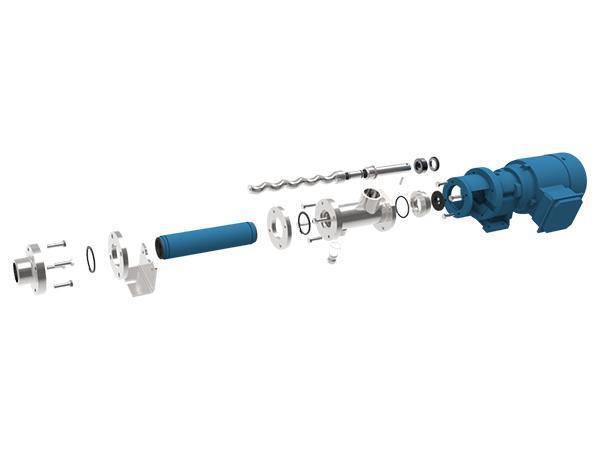

    Metering progressive cavity pump structure

Application
Metering progressive cavity pumps can be used for automatic, accurate metering applications and gelatinizing systems, including:
• Lithium battery coating
• Automobile seal coating
• Industrial electronic component gluing
• Solar panel conducting paint
• Chemical agent conveyance, medical materials in a lab
• Conveyance of pulpiness, jam[GF1]
• Quantitative dosing in sewage disposal plant
• Accurate dosing in papermaking plant

  • Metering Progressive Cavity Pump
  • Metering Progressive Cavity Pump
  • Metering Progressive Cavity Pump

Alternative media (viscosity ranges from 1mPa to 1,000,000mPa)
• Organic solvents: Ethyl alcohol, ammonium hydroxide and more
• Additives: Gum, diatomite filter aid and more
• Sizing materials: Glue, elargol,[GF2] adhesives
• Macromolecular compound: Polyacrylamide, starch, protein
• Food stuffing: Butter sauce, tomato sauce, meat stuffing
• Catalyst
• Abrasive

Specifications
Pump Model Max pressure (Bar) Rated flow (L/h) Flow rate
(L/h)
Rated speed
(rpm)
Speed range
(rpm)
Input and output flange dimensions
(mm)
Gear motor model
(IE1)
Gear motor installation Motor power
(kw)
Length
(mm)
Wide
(mm)
High
(mm)
VG006-0.6P04 MMRS 12 30 15-36 375 180~450 G 1/2" SK0XF-80S/4 B35 0.55 625 196 158
VD010-001P04 MMRS 12 70 35-85 375 180~450 G 1/2" SK0XF-80S/4 B35 0.55 625 196 158
VD015-006P02 MMRS 6 350 170-420 375 180~450 G1 1/4" or DN32 SK0XF-80S/4 B35 0.55 764 196 158
VD015-003P04 MMRS 12 175 80-210 375 180~450 G1 1/4" or DN32 SK0XF-80S/4 B35 0.55 764 196 158
VD020-018P02 MMRS 6 1000 500-1200 375 180~450 G1 1/4" or DN32 SK0XF-80L/4 B35 0.75 845 224 168
VD020-009P04 MMRS 12 500 250-600 375 180~450 G1 1/4" or DN32 SK0XF-80L/4 B35 0.75 845 224 168
VD030-056P02 OHRS 6 3000 1500~3600 360 180~430 DN50/PN16 SK01F-AL-90L/4 B5 1.5 1074 287 315
VD030-028P04 OHRS 12 1500 750~1800 360 180~430 DN50/PN16 SK01F-AL-90L/4 B5 1.5 1074 287 315
VD035-120P02 OHRS 6 6000 3370~7500 320 180~400 DN65/PN16 SK25F-AL-100L/4 B5 2.2 1349 309 350
VD035-120P02 OHRS 6 6000 3370~7500 320 180~400 DN65/PN16 SK25F-AL-100LA/4 B5 3 1349 309 350
VD035-060P04 OHRS 12 3000 1685~3750 320 180~400 DN65/PN16 SK25F-AL-100L/4 B5 2.2 1349 309 350
VD035-060P04 OHRS 12 3000 1685~3750 320 180~400 DN65/PN16 SK25F-AL-100LA/4 B5 3 1349 309 350
VD040-010P02 OHTS 6 8000 4800~12000 300 180~400 DN80/PN16 SK25F-AL-112M/4 B5 4 1462 319 394
VD040-005P04 OHTS 12 4000 2400~6000 300 180~400 DN80/PN16 SK25F-AL-112M/4 B5 4 1462 319 394

Performance
Equipped with NORD geared motor, the metering progressive cavity pump operates in a stable, reliable manner.

Metering accuracy: ±1% (speed is strictly proportional to flow rate)

Operating performance: When running, there is only a pulsation but no vibration, which ensures a continuous conveyance performance.

Rubber parts: Each rubber part is suitable for different types of mediums, such as oil, acid, alkaline and more.

Flow passage components: After surface-hardening treatment, the flow passage components will have an outstanding resistance to erosion and corrosion.

Applicable temperature: -20 ℃~180℃

Working pressure: 0 ~2.4MPa

Maintenance: Simple structure and easy replacement.

Metering Progressive Cavity Pump
Displacement pump, metering pump, proportioning pump

Weifang Subtor as a German Subtor invested company in China, offers wide range of progressive cavity pumps and components. The MM class metering progressive cavity pump has typical applications as sewage and wastewater pumping, viscous fluid pumping, chemical pumping, etc. A progressive cavity pump is a type of positive displacement pump, also known as eccentric screw pump. With German supported technology and rich marketing resources, Subtor provides quality PCP pumps with custom solutions for global clients.
